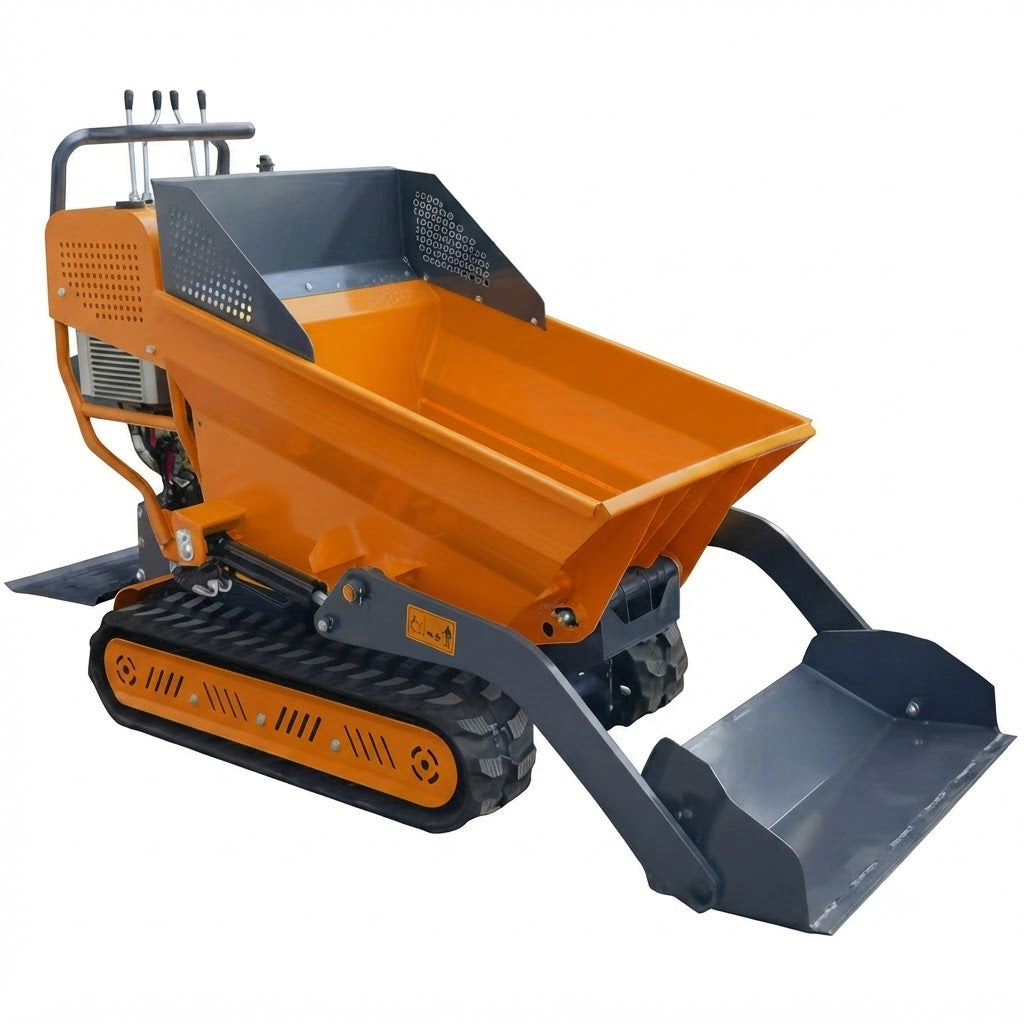

WolfEquip Mini Crawler Dumper 6.5HP Self Loading Tracked Carrier with Rato Engine EPA
WolfEquip Mini Crawler Dumper 6.5HP Self Loading Tracked Carrier with Rato Engine EPA
Couldn't load pickup availability
- Free Shipping
The WolfEquip 6.5HP Mini Crawler Dumper is a compact and powerful material transport machine designed for construction, landscaping, farming, and property maintenance applications. Featuring a tracked self-loading design, this mini dumper provides excellent traction and stability on rough terrain, slopes, and uneven job sites.
Powered by a reliable Rato 212cc engine, this tracked dumper is capable of transporting soil, sand, gravel, mulch, manure, debris, and other loose materials with ease. Its compact size allows operators to access narrow areas where larger equipment cannot operate, improving efficiency on small and medium-sized projects.
The self-loading design and hydraulic dumping system make loading and unloading materials faster and easier, reducing manual labor and increasing productivity.
Key Features & Benefits
Self-Loading Tracked Design
The crawler track system provides improved stability and traction on uneven terrain, muddy ground, slopes, and challenging job sites.
Powerful 6.5HP Rato Engine
Equipped with a reliable Rato 212cc gasoline engine, delivering consistent power for daily material transport operations.
Hydraulic Dumping System
The lever-controlled hydraulic tilt bed allows quick and efficient unloading of soil, gravel, sand, debris, and other materials.
Compact Size & Easy Maneuverability
Designed for tight spaces and restricted job sites, this mini crawler dumper can operate in areas where larger machines cannot access.
Heavy-Duty Material Transport
Built with a durable frame and tracked undercarriage to handle demanding applications in construction, agriculture, landscaping, and property maintenance.
Operator-Friendly Controls
Simple controls and excellent visibility provide easier operation for improved productivity and safety.
Technical Specifications
General Specifications
| Specification | Details |
|---|---|
| Brand | WolfEquip |
| Product Type | Mini Crawler Dumper |
| Drive System | Tracked Crawler |
| Loading Type | Self Loading |
| Maximum Load Capacity | 500 kg / 1,100 lbs |
| Cargo Box Volume | 0.22 m³ |
| Cargo Box Dimensions | 1040 × 730 × 590 mm |
| Travel Speed | 1.7 / 3.5 km/h |
| Minimum Turning Radius | 0.95 m |
| Track Center Distance | 509 mm |
| Minimum Ground Clearance | 85 mm |
| Gradeability | 20° |
Hydraulic System
| Specification | Details |
|---|---|
| Hydraulic Oil Tank Capacity | 7 L |
| Hydraulic Oil Grade | 46# Anti-Wear Hydraulic Oil |
Engine Specifications
| Specification | Details |
|---|---|
| Engine Brand | Rato |
| Engine Type | Gasoline Engine |
| Displacement | 212 cc |
| Power Output | 6.5 HP (4.8 kW) @ 3600 rpm |
| Fuel Capacity | 3.1 L |
| Engine Oil Capacity | 0.6 L |
Applications
Construction Sites
Transport soil, sand, gravel, concrete materials, and jobsite debris efficiently.
Landscaping Projects
Move mulch, dirt, rocks, plants, and landscaping materials with less manual effort.
Farm & Agriculture
Ideal for hauling manure, feed, fertilizer, hay, and harvested crops.
Property Maintenance
Handle leaves, branches, yard waste, and general cleanup tasks.
Warehouse & Yard Transport
Move materials around storage areas, yards, and industrial spaces.
Small Jobsite Access
Perfect for narrow paths, slopes, and uneven terrain where larger equipment cannot reach.
Why Choose WolfEquip Mini Crawler Dumper?
The WolfEquip Mini Crawler Dumper combines compact design, strong traction, and efficient material handling capability in one versatile machine. Whether used for construction, landscaping, farming, or property maintenance, it helps operators move materials faster while reducing labor requirements.
